1, the model features:

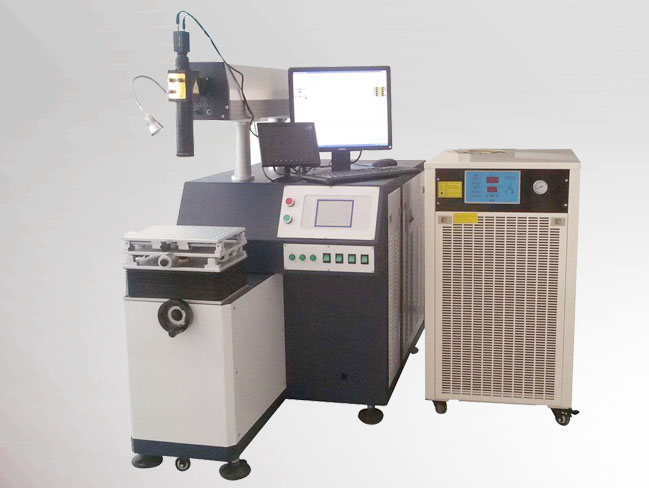

Glasses laser welding machineThe new four-dimensional technology, welding speed, high precision, good beam mode, especially for a variety of different types of metal frames of laser precision welding, laser power stable and lasting, can be automatically positioned, the production efficiency than ordinary welding machine to improve efficiency ten times. Fully automated platform, rotary table and automatic lift laser beam. Based on the win platform under the welding software, can be free to modify, simple operation, easy maintenance.
2, the model features:
1, Welded parts X, Y, Z, D axis for the import precision stepper motor drive, to meet the fast, accurate, large trip work needs.
2, repeat the positioning accuracy, no need to balance, improve production efficiency.
3, can be welded on the frame of various types of points, straight, round, oval and square plane arbitrary trajectory.
4, glasses automatic laser welding machine with independent laser power supply, stable conditions, to meet the 24-hour long-term welding production.
5, specifically for the glasses frame laser welding tailor-made four-axis linkage control system and tooling support, stable performance, easy to use.
3, the application areas:
Mainly applicable to the metal glasses frame, cups, stainless steel bowls, sensors, diodes, aluminum, cell phone batteries, door handles, electrical accessories and other metal irregular welding.
4, the technical parameters:
product name |
Glasses frame laser welding machine |
model |
CY-100 |
use |
Spot welding, welding |
Current |
communicate with |
Principle of action |
pulse |
Laser wavelength |
1064um |
Focal spot diameter |
0.1-2.0mm |
Laser welding depth |
01-1.5mm |
Pulse frequency |
1-100HZ |
Average power |
400W |
Maximum power |
450W |

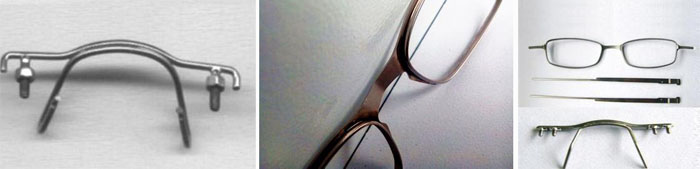

5, sample display:
